Example of the conventional value when ordering: Seal 100х75-1 TU38 105 1725-86
The seal for sealing of a cylinder with the diameter of 100 mm, a rod with the diameter of 75 mm made of a rubber of group 1 (7-3825)

The seals are designed for sealing a gap between the cylinder and piston (plunger and rod) in hydraulic devices operating under reciprocating motion with a slippage speed of not above 0,5 m/s under a pressure from 0,25 to 32 MPa (2,5-320 kgf/cv/m2) and at a temperature from -30 to +100°C

Operating environment: general machinery oil, machinery oil of IGL, IGSp series, additive-type turbine oil, aircraft AU oil, hydraulic fluids VMGZ, MG-30.

Note:
1.The assortment is to be confirmed when ordering.

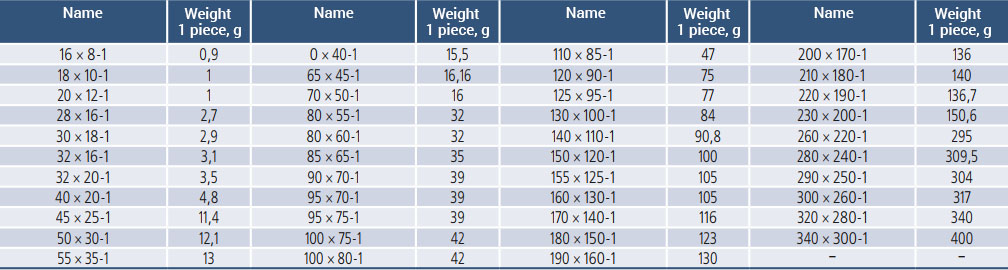

2. If the press molds are available, the manufacture of the other gland typical sizes, not indicated in the table, is possible.
